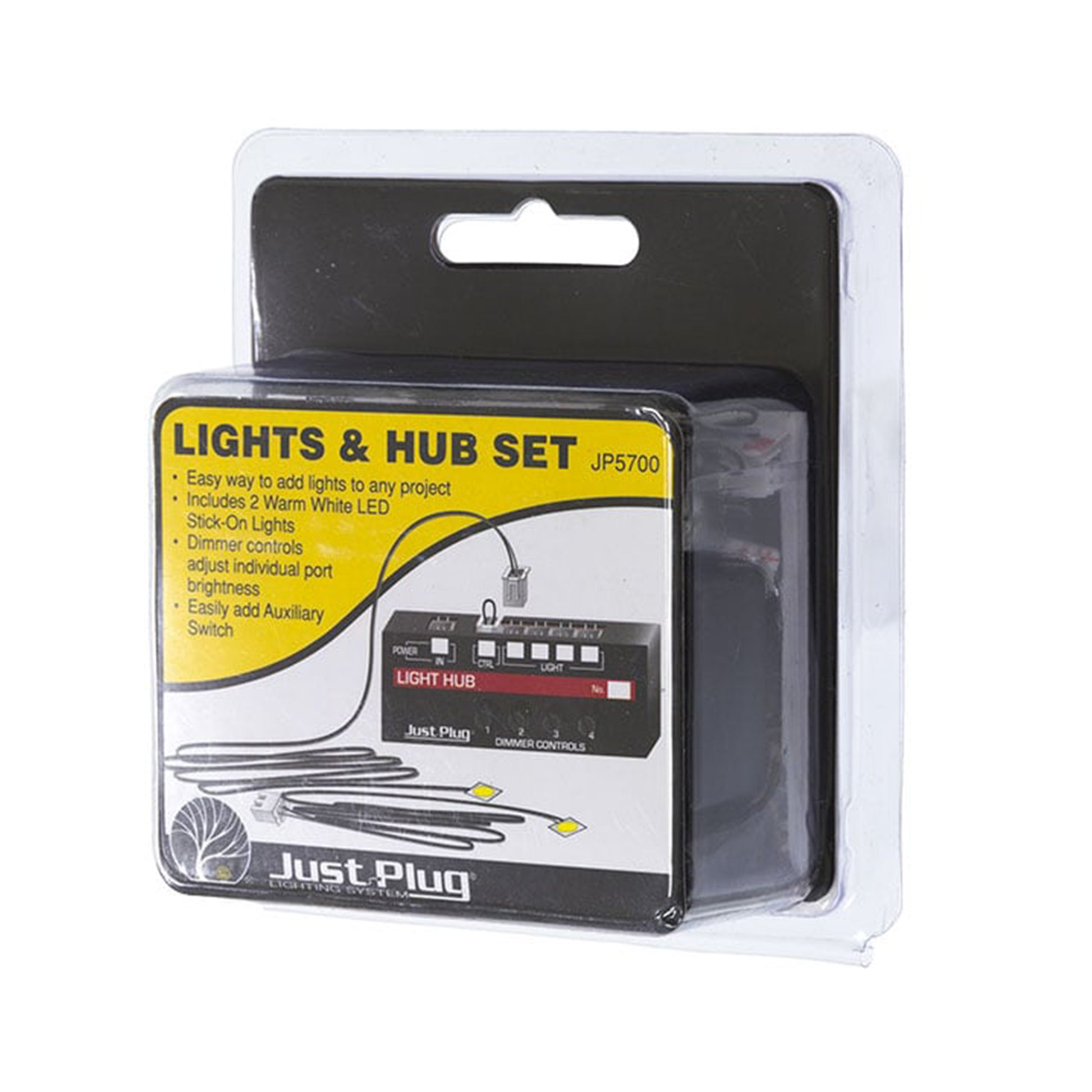

Woodland Scenics JP5700 Just Plug® Lighting System Lights & Hub Set

$17.85
$17.85 $20.99
Sale Sold out
Shipping calculated at checkout.
Only 1 left

Description via Woodland Scenics

All you need is power! This is the quickest and easiest way to add lights to any project. Use the individual dimmer controls to regulate light brightness. Add an optional Auxiliary Switch for convenient operation.

Powering Your Light System- You will need one Just Plug Power Supply (JP5770 US, JP5771 Euro, JP5772 UK or JP5773 Aus/NZ) to power up to 50 lights on your light system, or if you want to power your system from a train power pack, purchase Connecting Cables (JP5760).

RoHS compliant

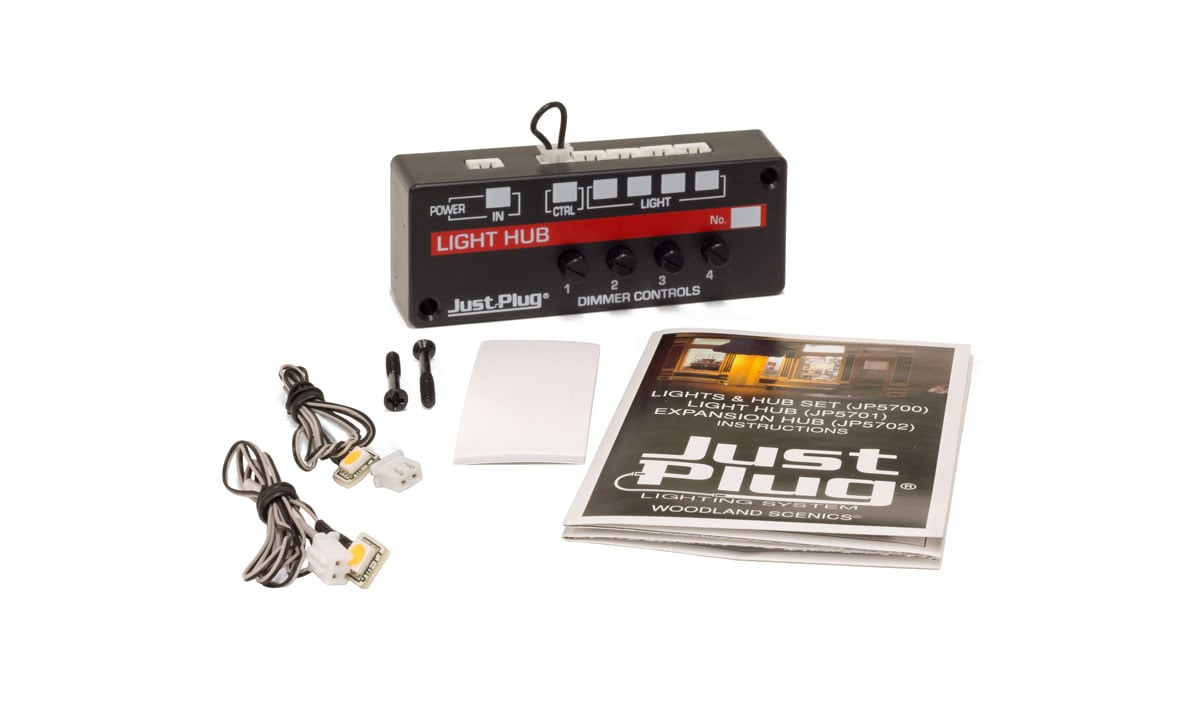

Kit includes:

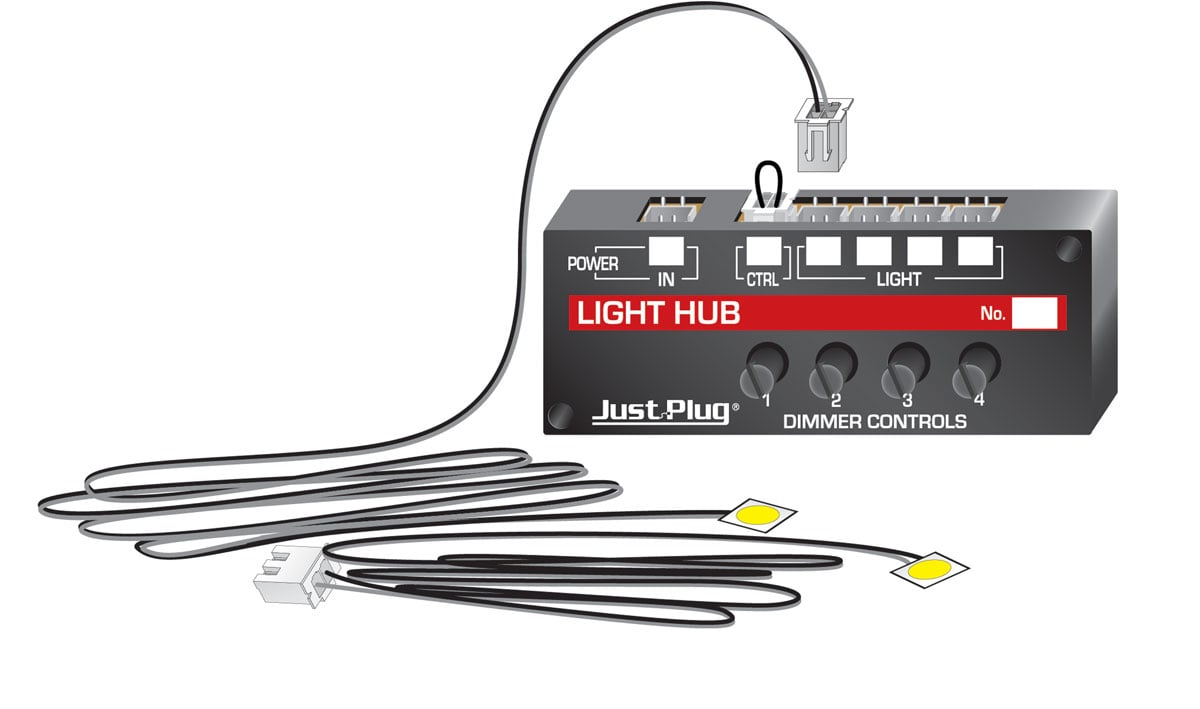

  • 1 Light Hub - 3 3/8" l x 1 5/16" w x 7/8" d (8.57 cm x 3.33 cm x 2.22 cm)
  • 1 CTRL Port Plug (installed)
  • 2 Warm White LED Stick-On Lights with 24" (60.9 cm) cables
  • Double-sided Mounting Tape - 1" x 2 1/2" (2.54 cm x 6.35 cm)
  • 2 Mounting Screws
  • Illustrated Instructions

What DC or AC voltage train power pack is required to power the Just Plug Light Hubs?

Just Plug Light Hubs can be powered with either DC or AC power. We recommend using 16-20VAC or 24VDC. If a lower AC or DC voltage is used, the light may be dimmer. Do not exceed 20VAC or 24VDC.

Can more than one Just Plug Nano or Stick-On light plug into one port on the Light Hub?

Yes, you can use up to 4 lights with the Just Plug Port Sharing Device.

Can you use the Just Plug System with non-Woodland Scenics bulbs?

The Just Plug Lighting System is made to be used with Just Plug products.

Where do I hook up my DCC to the Just Plug System?

To connect the Just Plug Lighting System to DCC, use a Connecting Cable .
Plug one end of the Connecting Cable into the CTRL Port on a Light Hub or Expansion Hub (JP5702). The other end of the Connecting Cable will be connected to a DCC relay unit (per DCC manufacturer instructions).

What is the voltage for each Light Hub Port?

Light Hub Ports are designed as current sources, not voltage sources. Each Light Hub Port provides up to 30 milliamps (mA) of current.

The Just Plug Auxilliary Switch controls which ports?

The Auxiliary Switch controls the ports that are to the right of the CTRL Port on Expansion Hubs and Light Hubs.

Click here to view a video about the Auxiliary Switch and port control.

What is the difference between a warm white light and a cool white light in the Just Plug Lighting System?

Warm white has a yellow undertone, commonly attributed to an incandescent bulb and cool white has a blue undertone, commonly attributed to a fluorescent bulb.

While using the Just Plug system, will I be able to control light brightness with my DCC relay unit?

No. You will be able to turn lights ON/Off remotely with DCC, but the dimmer controls on the Light Hubs will need to be adjusted manually.

I want to buy more of the lights included in the Lights & Hub Set. What is the item number?

The lights included with the Lights & Hub Set are  Warm White LED Stick-On Lights.
