Kadee #803 On3 Scale Plastic Couplers & Gearboxes - Black (New Old Stock)
Regular price
$4.99
Sale price
$4.99
Regular price
$7.30
Unit price
/
per
Sale
Sold out
Shipping calculated at checkout.
Only 2 left
Couldn't load pickup availability
This is a new old stock item.

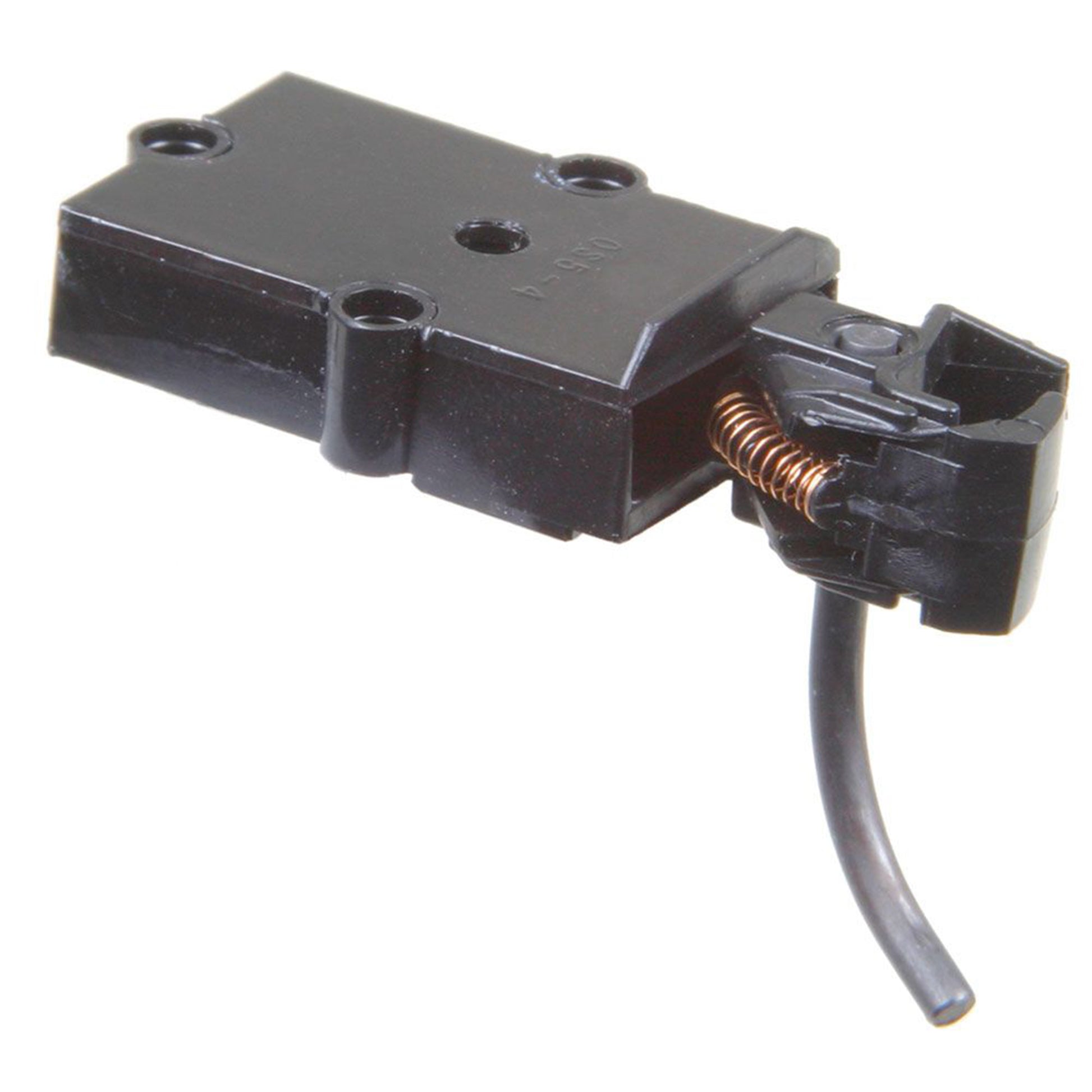

This industry leading coupler features #803 Plastic Couplers, and #846 On3 Scale centering spring and comes complete with Plastic Gearboxes and lids. 0-48 Mounting Screws are included.
Two pair per package
UPC: 765484008033
Made in the U.S.A.
On3-Scale
- Simple Drop in Design
- Trouble Free Operation
- World-Renowned Quality & Performance
- They just Last & Last & Last...
Package Includes:
- (4) Each #803 Plastic Couplers - Black
- (4) Each #803 Plastic Gearboxes & lids - Black
- (6) Each #846 On3 Scale Centering Springs
- (2) Extra #847 On3 Scale Knuckle Springs
- (8) Each 0-48 x 3/8 Screws
#803 Plastic Coupler Features:
| Material | - Plastic |
| Shank Length | - (17/64") (Back of head to center hole of Draft Gearbox) |
| Coupler Offset | - Centerset |
| Centering Spring | - #846 On3 Scale Centering Springs |
| Knuckle Spring | - #847 On3 Scale Knuckle Springs |
| Works In Place of | - #807 Couplers |
| Works With | - On3 Scale Draft Gearboxes |

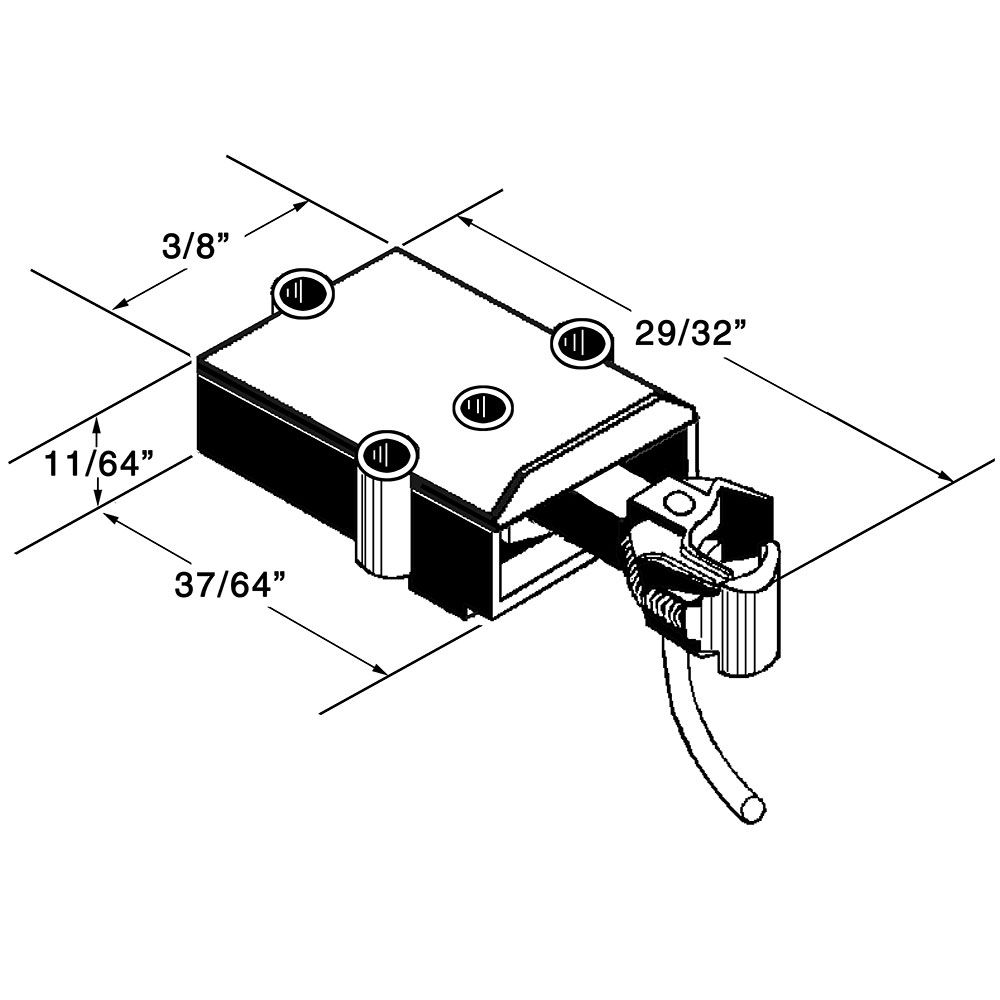

#803 Plastic Draft Gearboxes & Lids Features:
| Material | - Plastic |
| Dimensions | - 37/64"L x 3/8"W x 11/64"H |
| Works With | - #808 Couplers |

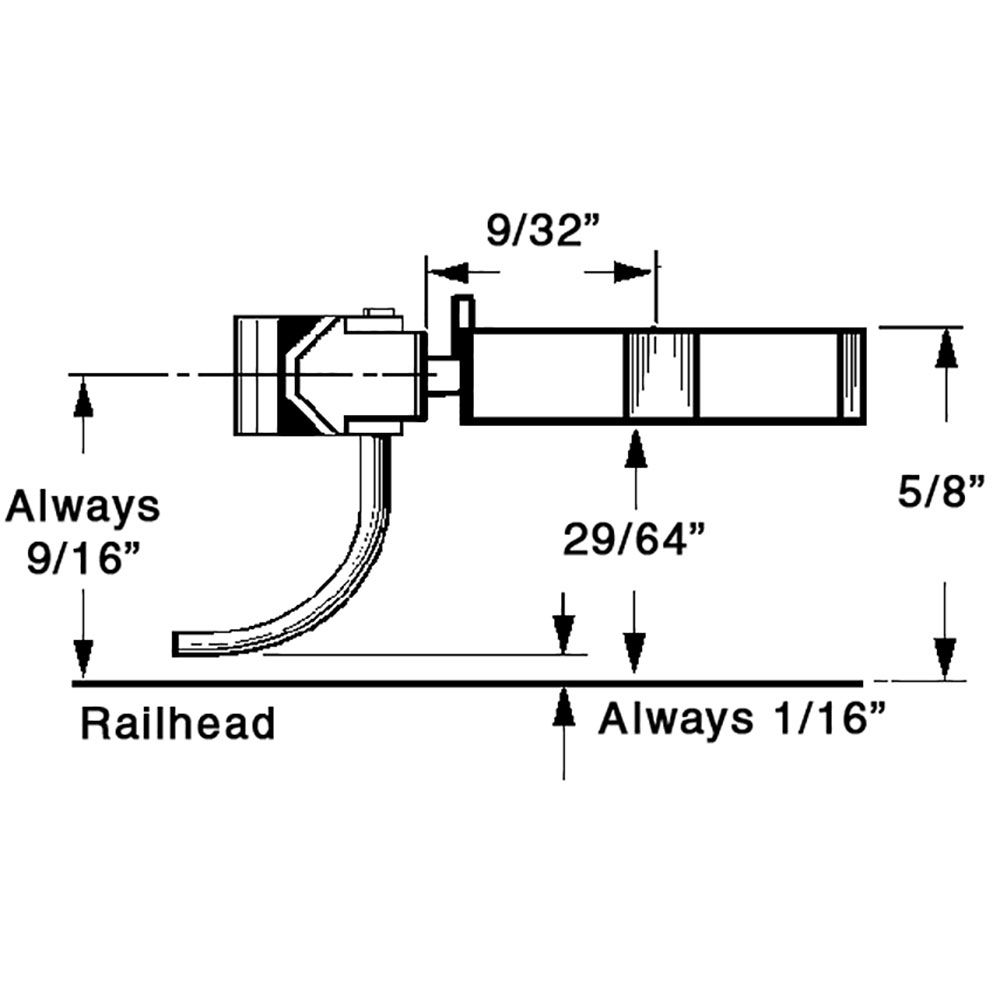

Mounting Specifications:
| Mounting Height | - 5/8" |
| Centerline | - 9/16" |
| Trip Pin Height | - 1/16" |
| Mounting Holes | - 0-48 or 0-80 screws are the most commonly used screws. (Screw length will vary) |
Recommended Tools:
- #813 On3 Scale Coupler Height Gauge
- #231 Greas-em Dry Graphite Lubricant
- #237 Coupler Trip Pin Pliers
- #240 Double Headed Pin Vise
- #241 Dual Tool Manual Uncoupling Tool and Spring Pick
- #246 Tap (2-56) and Drills (#50 and #43)
Product description courtesy of Kadee Quality Products
