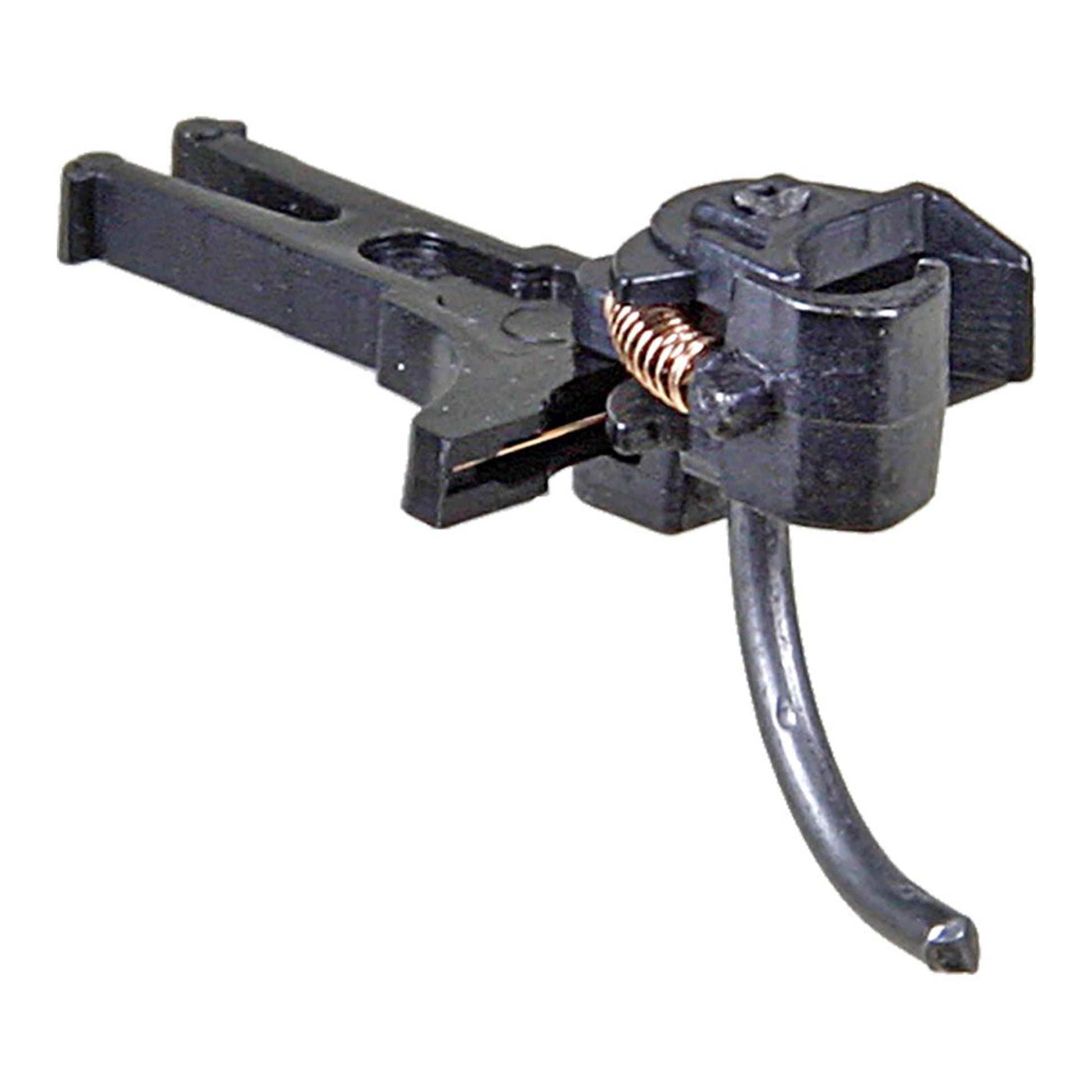

Kadee #19 HO NEM 362 European-Style Couplers - Long (10.67mm, .420 inch, 27/64"), 2 Pair
Regular price
$9.90
Sale price
$9.90
Regular price
$10.99
Unit price
/
per
Sale
Sold out
Shipping calculated at checkout.
Only 1 left
Couldn't load pickup availability
Product description via Kadee

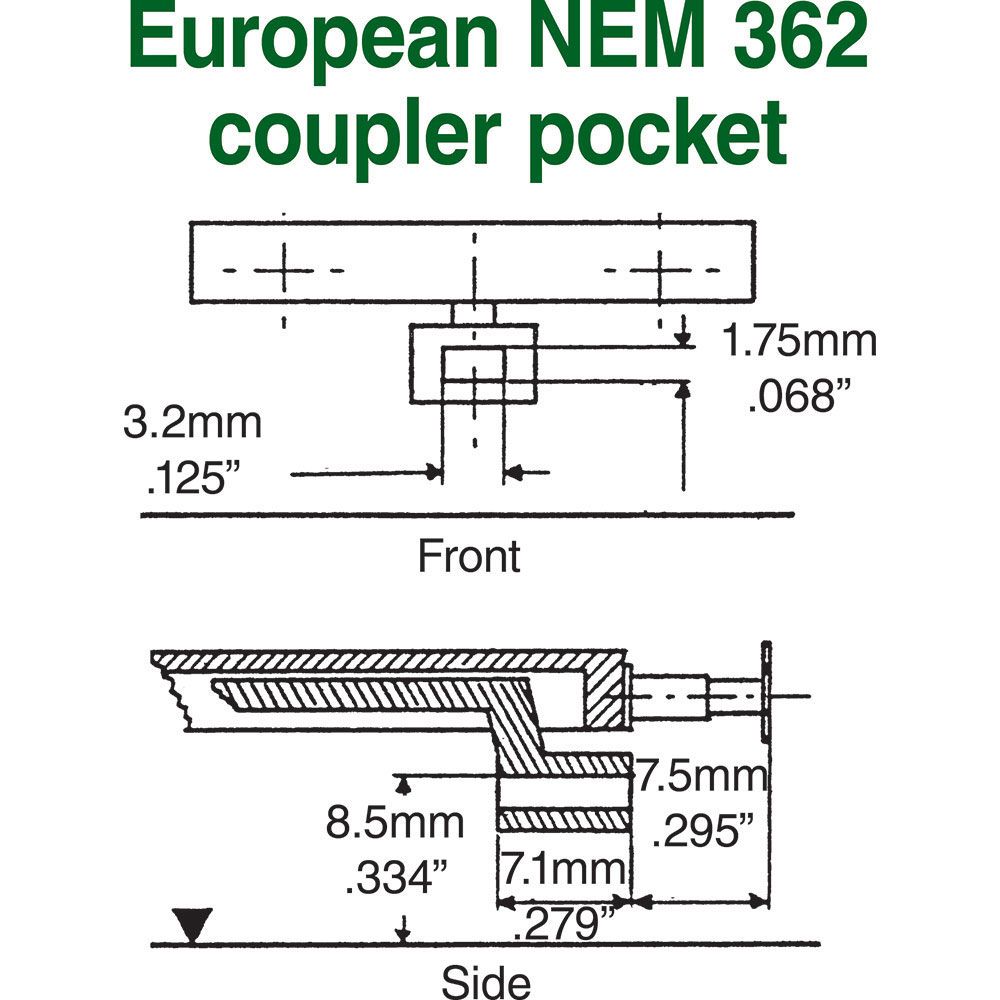

This industry leading coupler features an NEM 362 European Style Coupler. The #19 Magne-Matic® NEM 362 European Style Coupler that is mounted in the HO-Scale NEM 362 draft gear box pocket.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
Refer to our helpful Coupler Conversion Charts to determine the appropriate coupler to use on your model.
Two pair per package
(w/o Draft Gear Boxes)
UPC: 765484000198
Made in the U.S.A.
HO-Scale
Package Includes:
- (2) Pair #19 Couplers (Aassembled) - Long Underset
- (2) #622 Knuckle Springs
#19 Coupler Features:
| Material | - Metal Knuckle, Plastic Coupler Swallow-tail Shank |

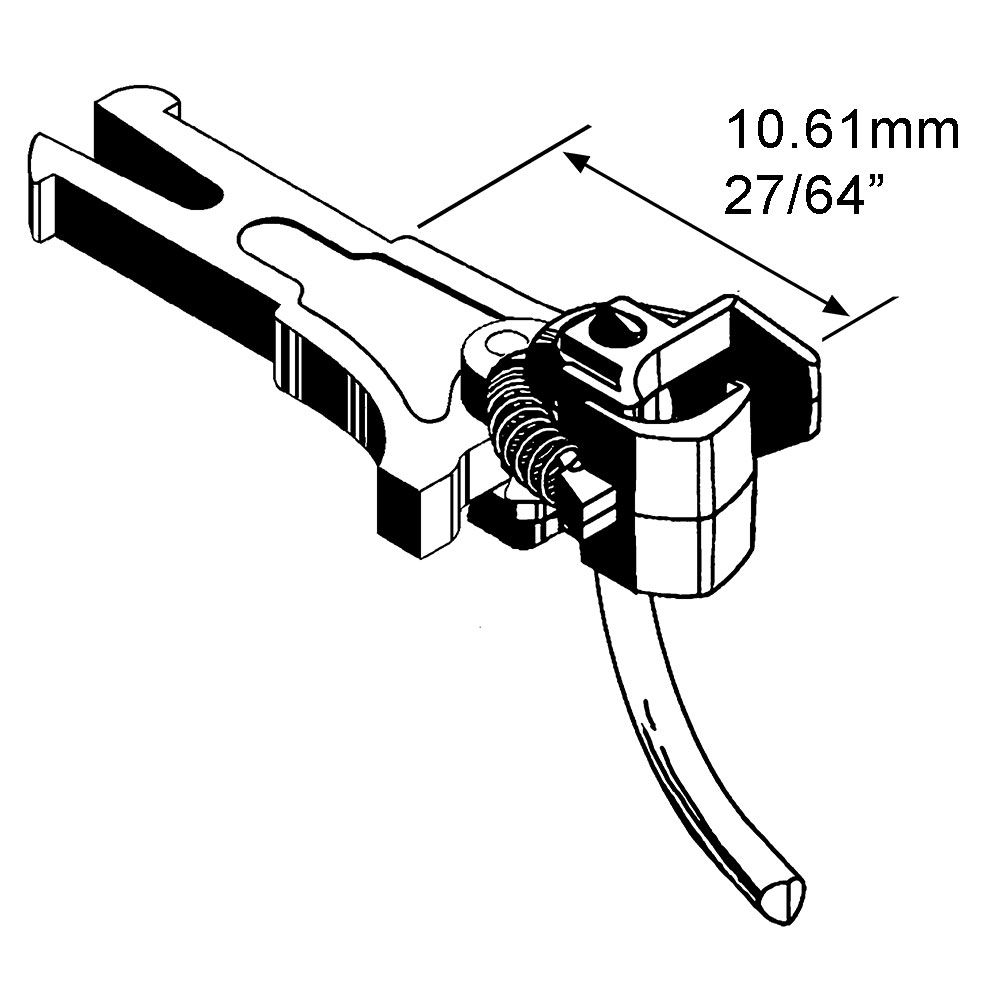

| Shank Length | - Long (10.67mm , .420 inch , 27/64") (pulling face to the dovetail shoulder) |
| Coupler Offset | - Underset Shank |
| Knuckle Spring | - #622 |
| Centering System | - NEM European Style Coupler |
| Head | - Standard Head |

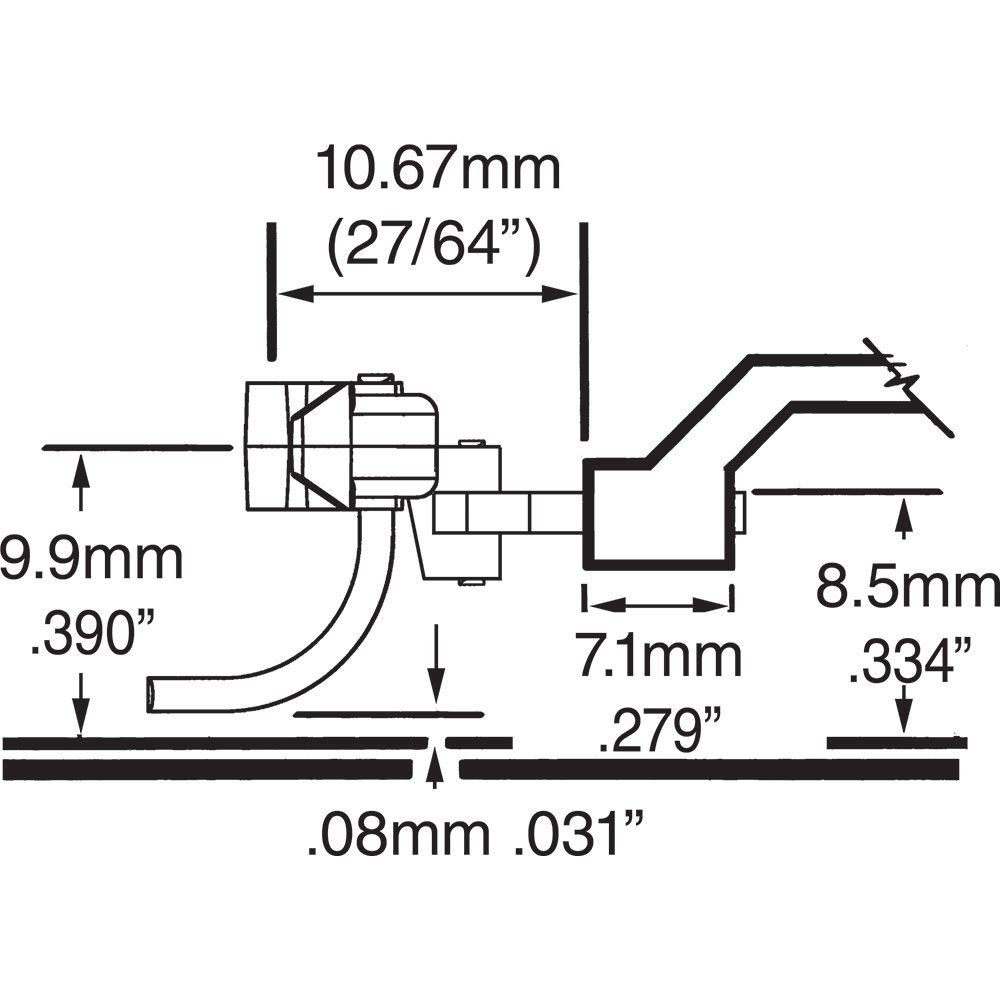

Mounting Specifications:
| Shank Length | - 10.67mm , .420" |
| Coupler Centerline Height | - 9.9mm , .390" |
| Trip Pin Height | - .08mm , .031" |
